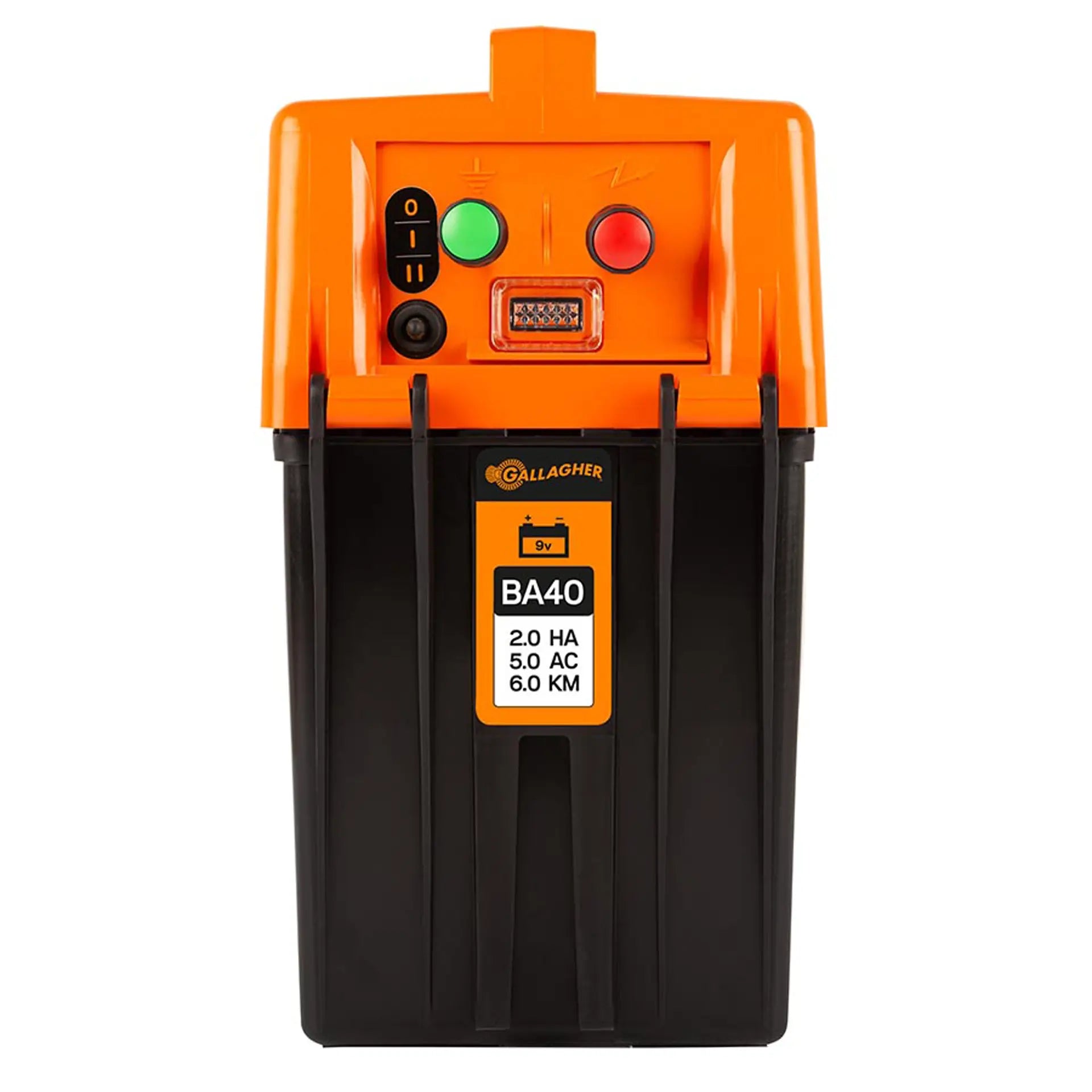

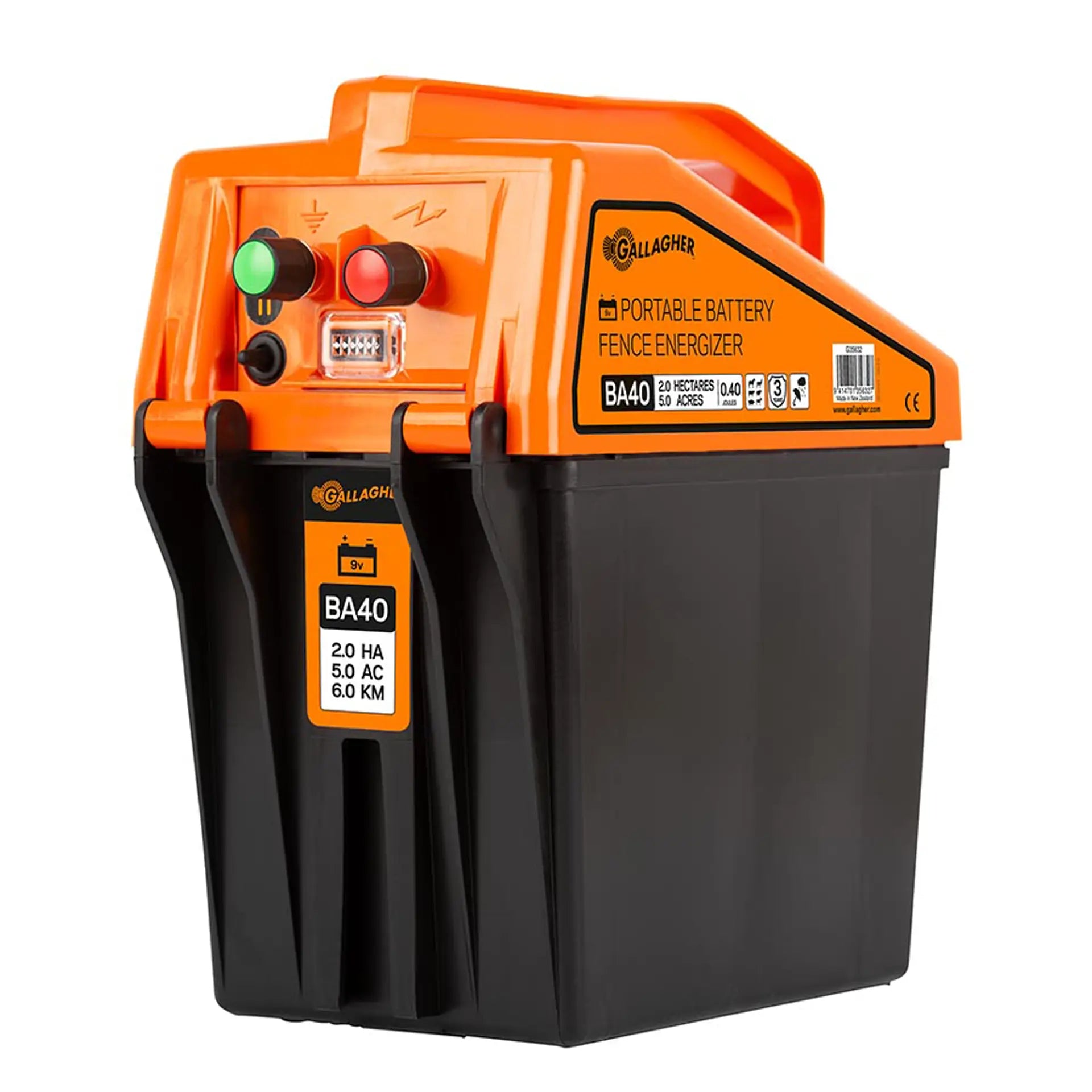

Gallagher Gallagher BA40 battery fence energiser (9/12 V)
Gallagher Gallagher BA40 battery fence energiser (9/12 V)
SKU:356327
Low stock: 10 left
Regular price
£224.00 GBP
Regular price
Sale price
£224.00 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
- Good price-quality ratio and easy to operate
- Works with a 9V battery or a 12V battery
- With additional cable set 005499
- Splash waterproof casing
- LED indicators show the status of the battery and energiser
The BA40 is a battery energiser for fences of up to 6 km, easy to move and to connect. This energizer has 2 different modes. In mode 1 the energiser provides a standard pulse with maximum Joules. In mode 2 the energiser provides 1 pulse of 100% followed by 3 pulses of 50%. It means the battery lasts much longer and you are still sure to have sufficient power on your fencing. Supplied with a connection cable set. Battery not included.
Specifications:
- Maximum output voltage (V): 9600
- Charging energy (J): 0.4
- Maximum impulse energy (J): 0.27
- Number of earthing rods required: 1 x 1 m
- No vegetation (km) (recommended): 6
- Light vegetation (km) (recommended): 3
- Dense vegetation (km) (recommended): 1,5
- Fence surface (ha) (recommended): 2
| 9V/12V connection: | ?/? |
|---|---|
| Avg. current draw Battery (mA): | 43 |
| Avg. current draw safemode 12V Battery (mA): | - |
| Battery leads included: | - |
| Day savings option: | - |
| Fencecable included: | ? |
| Warranty (years): | 3 |
| IPX classification: | IPX4 |
| Recommended number of earth stakes: | 1x1m |
| Suitable for solar panel (minimal advised): | - |
| Suitable powersupply (Part No.): | - |
| Normal - slow pulse mode: | ? |
| Auto power conservation to prevent damage to battery: | @12V |
| Device indicator light On/Off: | ? |
| Battery LED (indicator): | ? |
| Battery safemode: | - |
| Battery performance - normal modus (days/VAh): | ^160 days / 9V175Ah |
| Grid area (Hec/Acre): | 2/5 |
| Multi (3) Wire Fence distance - Recommended (km): | 1,5 |
| Multi (2) Wire Fence distance - Ideal conditions (km): | 6 |
| Multi (2) Wire Fence distance - Light conditions (km) : | 4 |
| Single Wire Fence distance - Ideal conditions (km): | 18 |
| Output Energy (J): | 0,26 |
| Stored Energy (J): | 0,4 |
| Voltage with 100 Ohm (V): | 450 / 340 |
| Output with 500 Ohm (V): | 1800 / 1400 |
| Maximum output Voltage: | 9400 |
| Half power mode: | - |
| Night savings option: | - |
| Recommended Battery (minimal advised): | 9V-120Ah |
| Weight (Kg): | 1,6 |
