Gallagher Gallagher MBS800 fence energiser
Gallagher Gallagher MBS800 fence energiser
SKU:390314
Low stock: 10 left
Regular price
£509.00 GBP
Regular price
Sale price
£509.00 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
- Compact and portable design
- Suitable for fences up to 40 km
- Easy to install and operate mains equipment
- With integrated lighting protection

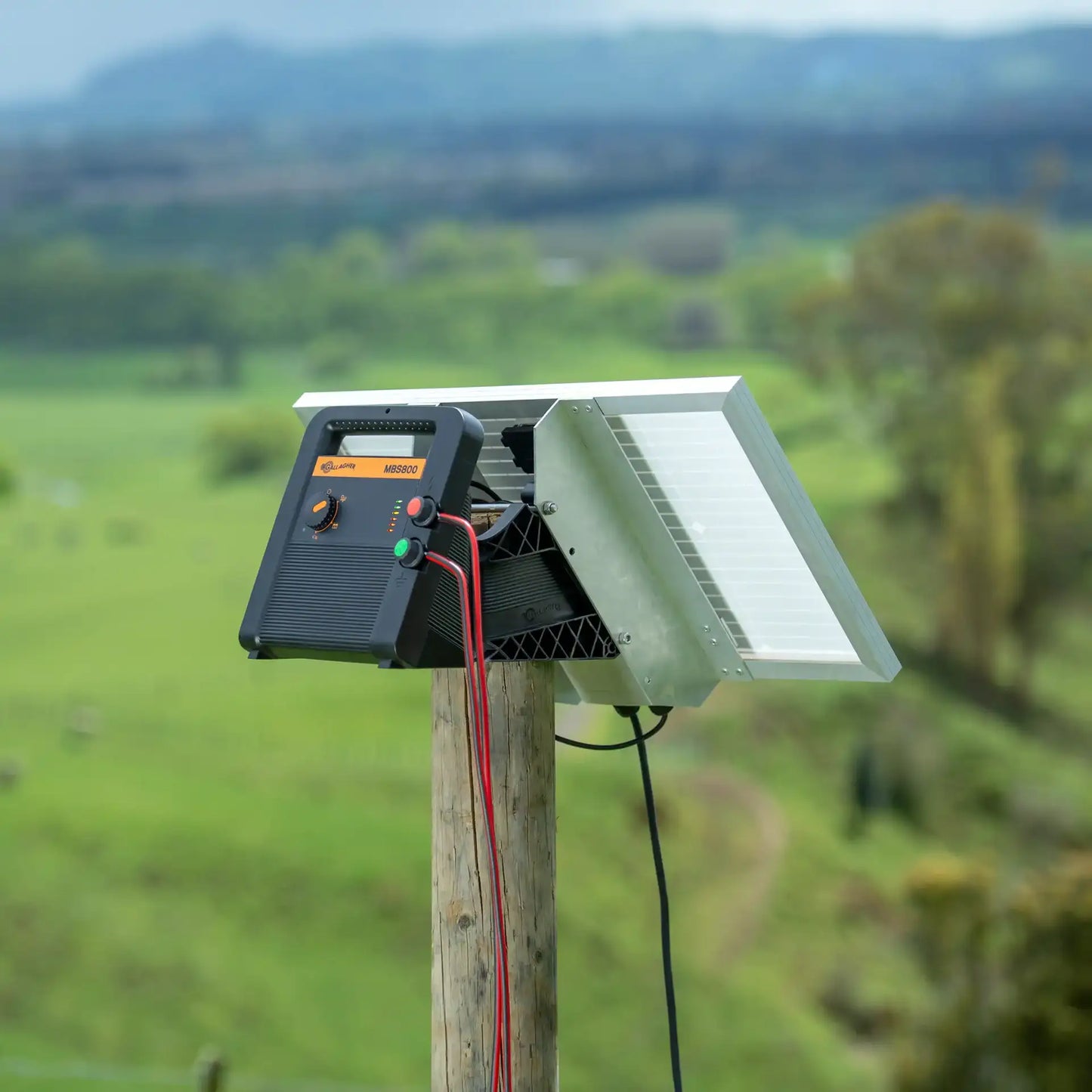

The MBS800 is the most powerful 3-in-1 multi-power energiser. This energiser can be used with 230V, a 12V battery or a solar panel. You can select your source of power with a button with various settings. The energiser is suitable for fencing of up to 40 km and has a battery control indicator. Includes a set of cables.
Specifications:
- Maximum output voltage (V): 9200
- Charging energy (J): 7.5
- Maximum impulse energy (J): 4.7
- Number of earthing rods required: 4 x 2 m
- No vegetation (km) (recommended): 40
- Light vegetation (km) (recommended): 29
- Dense vegetation (km) (recommended): 10
- Fence surface (ha) (recommended): 32
| Avg./Max current draw 12V Battery (mA) : | 331/1000 |
|---|---|
| Battery check mode: | ? |
| Battery only mode: | ? |
| Fence and Earth connection lead included: | 004938 |
| Smart battery management: | ? |
| Solar and battery mode: | ? |
| Suitable for Electrified Vandal Proof Box (083046): | - |
| Suitable for Gallagher Solarbox (073511): | ? |
| Warranty (years): | 3 |
| IPX classification: | IPX4 |
| Recommended number of earth stakes: | 5x1,7m |
| Suitable for solar panel (minimal advised): | *60W |
| 12V Battery Leadset MB/MBS Series included: | 582207 |
| Suitable powersupply (Part No.): | 401218 |
| Powersupply included: | ? |
| Auto power conservation to prevent damage to battery: | ? |
| Built-in lightning protection: | ? |
| Device indicator light On/Off: | ? |
| Battery LED (indicator): | LED Bar |
| Battery safemode: | - |
| Battery performance - normal modus (days/VAh): | ^5 days / 12V105Ah |
| Avg. power cons. 15V Powersupply (W): | 6,7 |
| Grid area (Hec/Acre): | 32/80 |
| Multi (3) Wire Fence distance - Recommended (km): | 10 |
| Multi (2) Wire Fence distance - Ideal conditions (km): | 40 |
| Multi (2) Wire Fence distance - Light conditions (km) : | 29 |
| Single Wire Fence distance - Ideal conditions (km): | 100 |
| Output Energy (J): | 4,9 |
| Stored Energy (J): | 7,5 |
| Voltage with 100 Ohm (V): | 2700 |
| Output with 500 Ohm (V): | 6700 |
| Maximum output Voltage: | 9200 |
| Alarm indicator LED fence voltage: | ? |
| Weight (Kg): | 2,9 |
