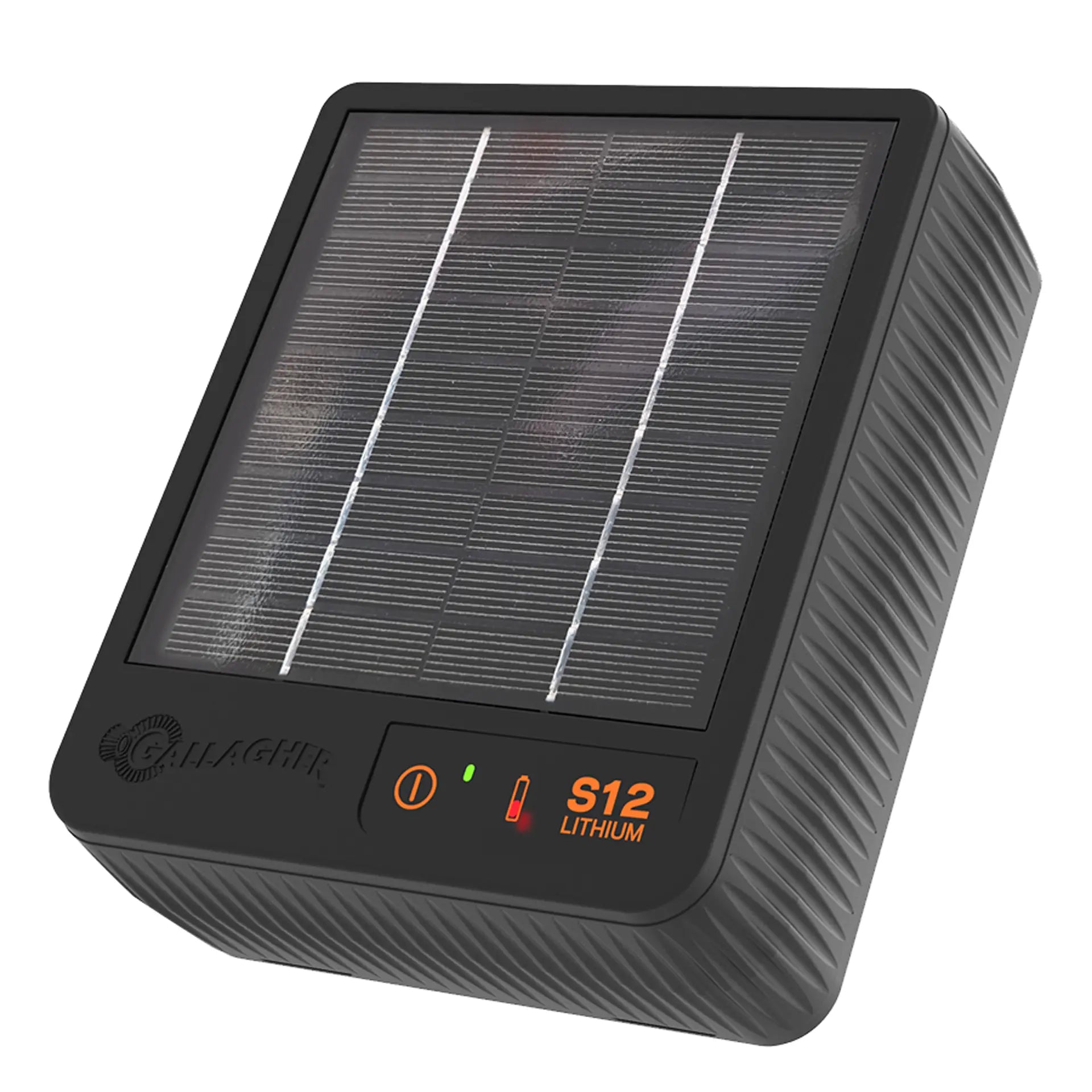

Gallagher Gallagher S12 Solar fence energiser incl. Lithium battery (3.2 V - 6 Ah)
Gallagher Gallagher S12 Solar fence energiser incl. Lithium battery (3.2 V - 6 Ah)
SKU:349015
Low stock: 10 left
Regular price
£159.00 GBP
Regular price
Sale price
£159.00 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
- Works for 3 weeks without direct sunlight
- Super-strong, drop-proof, waterproof housing
- Quick and easy to install
- Built-in lightning protection
- Lithium battery provides more power and a longer lifespan
This energiser is powerful, compact and reliable. Suitable for strip grazing and other portable fencing. Easy to transport and to install. Mount the S12 on a Ring Top Post and the earthing is sorted out at the same time. Suitable for fencing of up to 1.5 km.

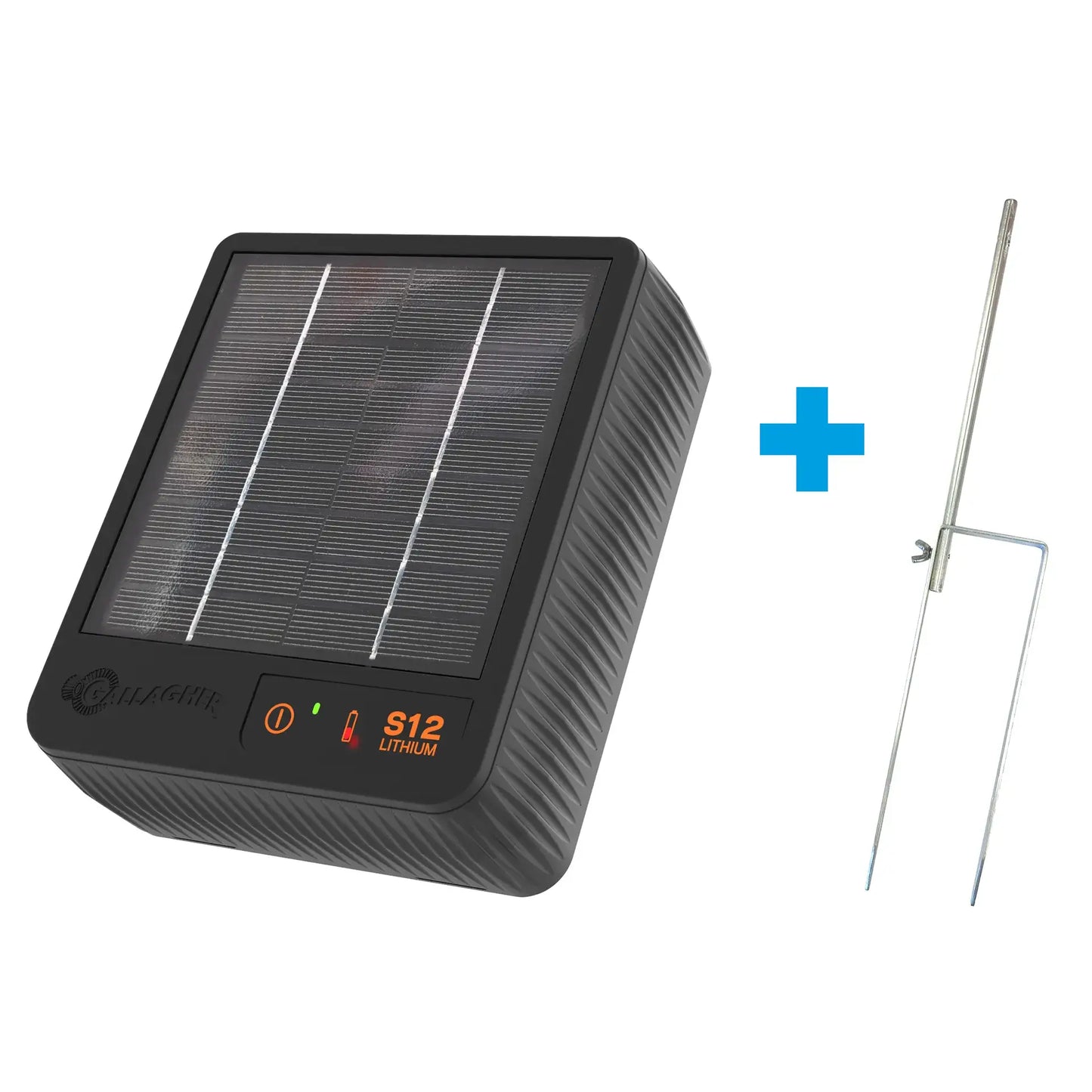

Ringtop post not included!
Specifications
- Maximum output voltage (V): 9200
- Charging energy (J): 0.12
- Maximum impulse energy (J): 0.08
- Solar panel (Watt): 2.2
- Recommended number of earth stakes: 1 x 0.5 m
- Singlewire distance – max length (km): 3.5
- Multiwire distance – ideal conditions (km): 1.5
- Multiwire distance – light growth (km): 0.7
- Multiwire distance – recommended (km): 0.4
- Grid area (hectare/acre): 0.7/1.5
| Warranty (years): | 3 |
|---|---|
| IPX classification: | IPX4 |
| Recommended number of earth stakes: | 1x0,5m |
| Normal - slow pulse mode: | - |
| Auto power conservation to prevent damage to battery: | - |
| Device indicator light On/Off: | ? |
| Battery LED (indicator): | ? |
| Battery safemode: | - |
| Grid area (Hec/Acre): | 0,75/1,5 |
| Multi (3) Wire Fence distance - Recommended (km): | 0,4 |
| Multi (2) Wire Fence distance - Ideal conditions (km): | 1,5 |
| Multi (2) Wire Fence distance - Light conditions (km) : | 0,7 |
| Single Wire Fence distance - Ideal conditions (km): | 3,5 |
| Output Energy (J): | 0,08 |
| Stored Energy (J): | 0,12 |
| Voltage with 100 Ohm (V): | 500 |
| Output with 500 Ohm (V): | 1500 |
| Maximum output Voltage: | 9000 |
| Avg. current draw Battery (V/mA): | 3,2V 39/29 day/night |
| Days operational with no daylight: | - |
| Night savings option: | - |
| Built-in solar panel: | 2,2W |
| Fence connection wire included: | ? |
| Rechargeable Battery included: | ? |
| Suitable Stand (height): | Ringtop post (max.12mm) |
| Weight (Kg): | 0,93 |
