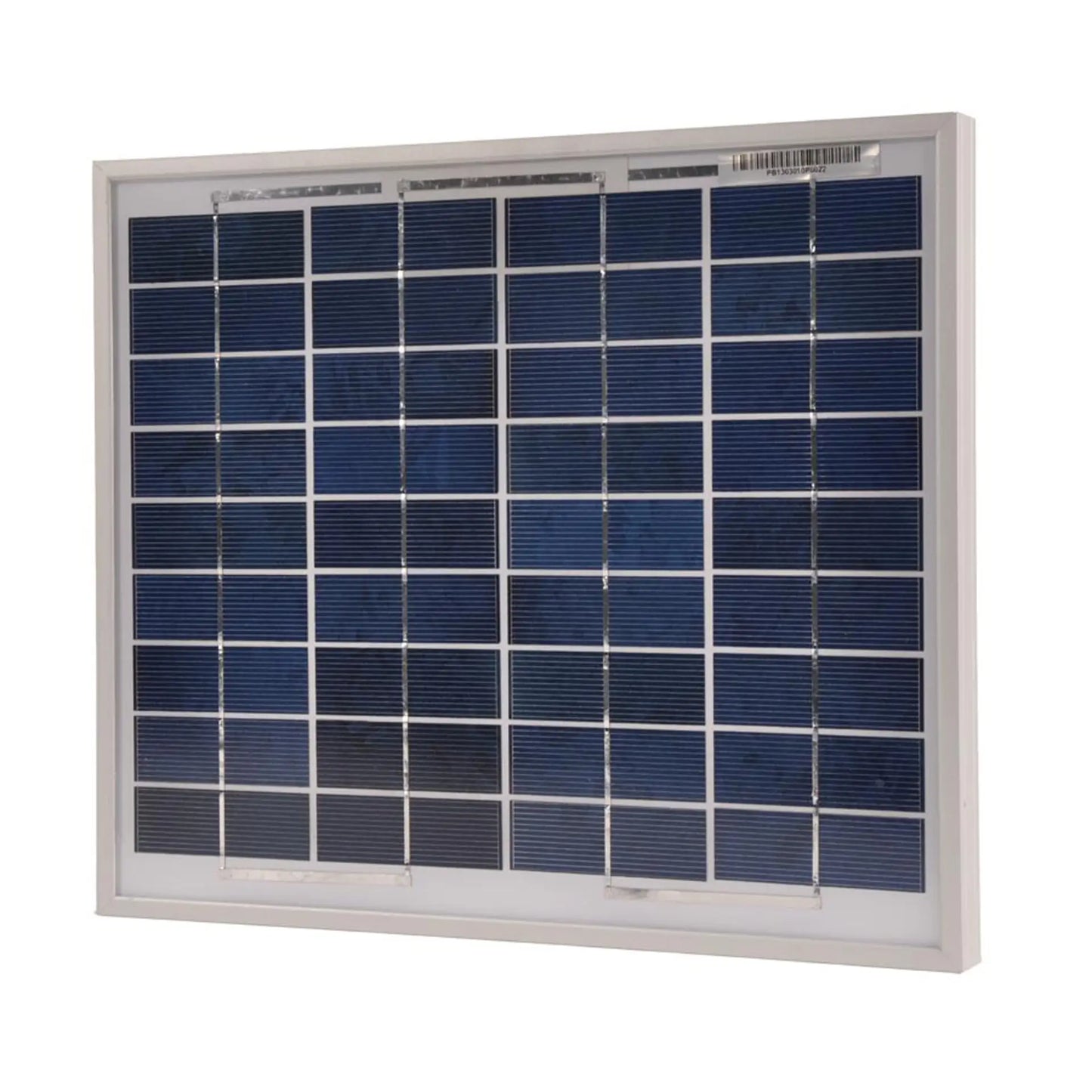

Gallagher Solar panel (10W)
Gallagher Solar panel (10W)
SKU:041701
Low stock: 10 left
Regular price
£169.00 GBP
Regular price
Sale price
£169.00 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
- Performs well with limited sunlight
- High power, waterproof regulator increases solar panels capacity
- Suitable for the B40, B50, B80 and the B100 fence energisers
- Mounting bracket not included.
Polycrystalline high- performance solar module with optimised low- light and temperature features. Shock- resistant and hardened solar glass with self- cleaning surface and sturdy aluminium frame. Complete with power cable. Very easy fitting. More than 20 year service life.
| Built-in voltage regulator: | 2Amp |
|---|---|
| Cell Number: | 36 (4x9) |
| Cell Type: | Poly-crystalline |
| Crocodile clips included: | ? |
| Frame: | Anodized Aluminium Alloy |
| Glass Thickness (mm): | 3,2 |
| Glass Type: | Tempered |
| Included battery connection lead (m): | 2 |
| Length x width x height (mm): | 340 x 280 x 17 |
| Maximum system voltage (DC): | 1000V |
| Min. recommended 12V battery (Ah/Ah): | 25/65 |
| Nominal current (Imp): | 0.59A |
| Nominal peak power (Wp): | 10Watt |
| Nominal voltage (Vmp): | 17.3 |
| Open-circuit voltage (Voc): | 21.6 |
| Operating temperature: | -40C to +85C |
| Short-circuit current (Isc): | 0.65A |
| Suitable for (minimal advised)*: | B20, B60, B100 BA20, BA30 |
| Warranty (years): | 2 |
| Weight (Kg): | 1,1 |
