PTO Drive Shaft 1 3/8 6 Spine Clutched Push pin Release Guarded Bell Tube 1200mm
PTO Drive Shaft 1 3/8 6 Spine Clutched Push pin Release Guarded Bell Tube 1200mm
Low stock: 5 left
A Power Take-Off (PTO) drive shaft is a vital component for many farming operations. It transfers power from the tractor to an implement, such as a mower or baler. The PTO Drive Shaft 1.3/8 6 spl Clutch with Push Pin Release 1200mm is a complete telescopic "bell" tube shaft that features a built-in clutch to prevent mechanical stress during deceleration, a push pin quick release for easy and secure coupling and uncoupling, and a fully covered shaft. Its closed length is 1200mm, and the tubes must overlap by at least 1/3 of their length when extended for optimal performance.
Technical specification
Tube Type: Tri-Wall/Bell
Outer Tube Thickness: 43.4mm
Outer Tube Wall Thickness: 3.3mm
Inner Tube Thickness: 36.1mm
Inner Tube Wall Thickness: 4.4mm
Closed Length: 1200mm

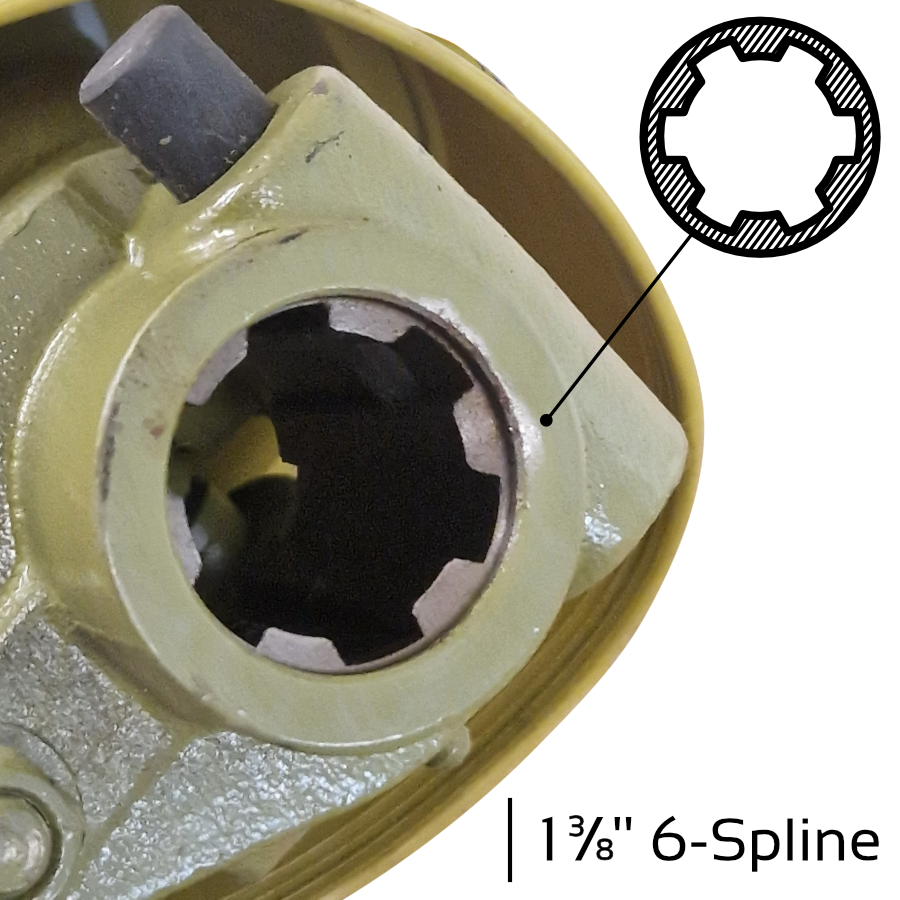

PTO Stub Fitment: 1 3/8" x 6 Spline
PTO Stub Fitment (Implement): 1 3/8" x 6 Spline
