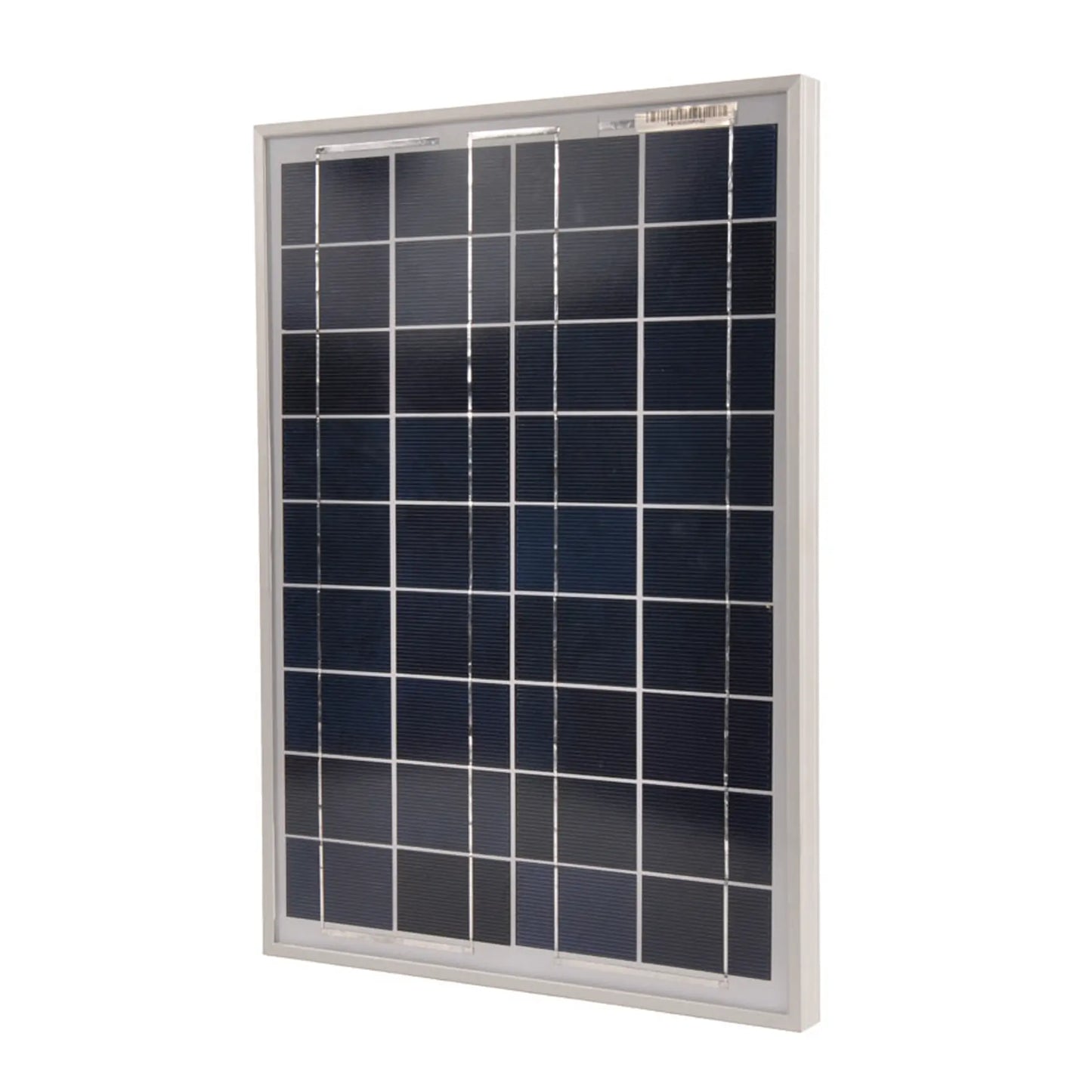

Gallagher Solar panel (20W)
Gallagher Solar panel (20W)
SKU:041732
Low stock: 10 left
Regular price
€243,95 EUR
Regular price
Sale price
€243,95 EUR
Unit price
/
per
Taxes included.
Couldn't load pickup availability
- Performs well with limited sunlight
- High power, waterproof regulator increases solar panels capacity
- Suitable for the B40, B50, B80 and the B100 fence energisers
- Mounting bracket not included.
Gallagher's crystalline solar panels perform well for the entire pasture season, even with limited sunlight. The panels come with a waterproof high power regulator that increases their capacity by about 20%.
This 20W solar panel is suitable for the B40, B50, B80 and B100.
| Built-in voltage regulator: | 2Amp |
|---|---|
| Cell Number: | 36 (4x9) |
| Cell Type: | Poly-crystalline |
| Crocodile clips included: | ? |
| Frame: | Anodized Aluminium Alloy |
| Glass Thickness (mm): | 3,2 |
| Glass Type: | Tempered |
| Included battery connection lead (m): | 2 |
| Length x width x height (mm): | 340 x 450 x 25 |
| Maximum system voltage (DC): | 1000V |
| Min. recommended 12V battery (Ah/Ah): | 65/85 |
| Nominal current (Imp): | 1.15A |
| Nominal peak power (Wp): | 20Watt |
| Nominal voltage (Vmp): | 17.5 |
| Open-circuit voltage (Voc): | 22.0 |
| Operating temperature: | -40C to +85C |
| Short-circuit current (Isc): | 1.27A |
| Suitable for (minimal advised)*: | B35, B40, B50, B80 BA40, MB150, MBS200 |
| Warranty (years): | 2 |
| Weight (Kg): | 1,8 |
