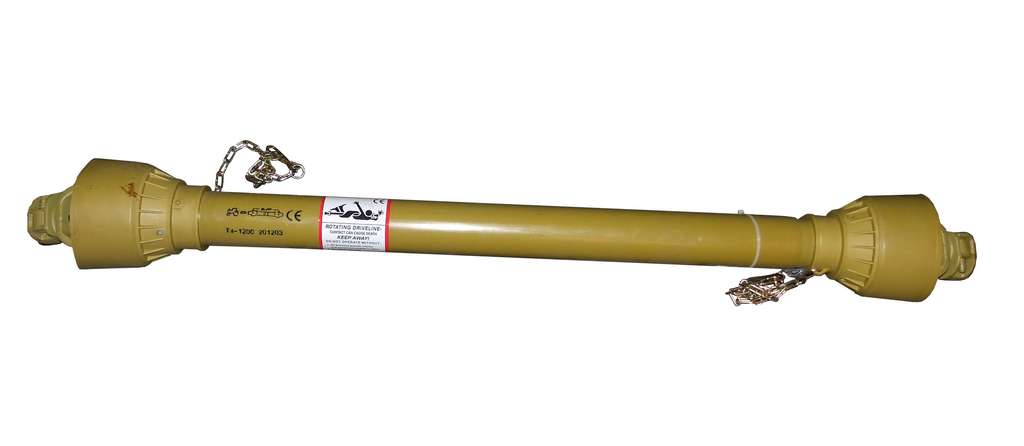

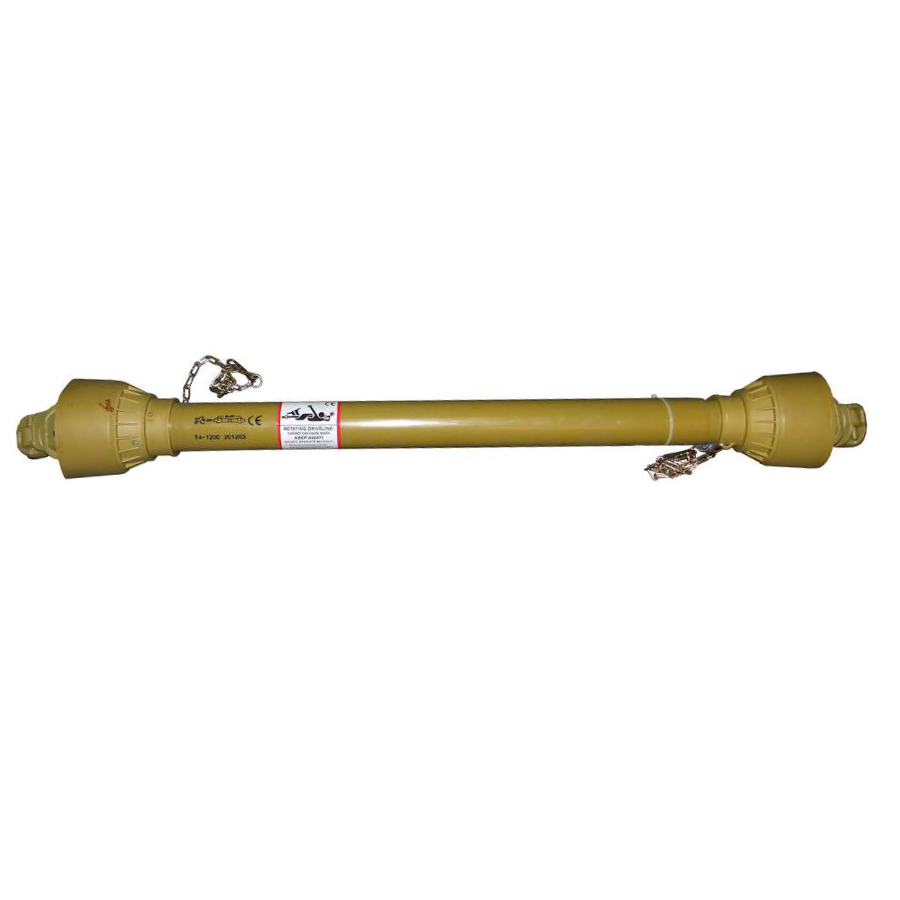

PTO Drive Shaft A1 610mm 1.3/8 x 6 Spline Quick Release Bell Tube 610-800mm

Quick-Release Coupler
For both tractor and implement ends. To fit standard 1.3/8" x 6 spline drive shafts. Totally secure, yet quick & easy to hitch/unhitch.

Telescopic "Bell" Shaft
With a minimum end-to-end distance of 800mm, extends to suit distance required for implement. "Bell" tube profile for moderate to heavy loads.

Fully Shielded
Shaft is complete with a FULL Safety Shield. Do not operate the driveline if shielding is not in place. Shaft Guard must turn freely on the driveline.

IMPORTANT
Refer to User Manual for instructions on greasing, shortening and general use.

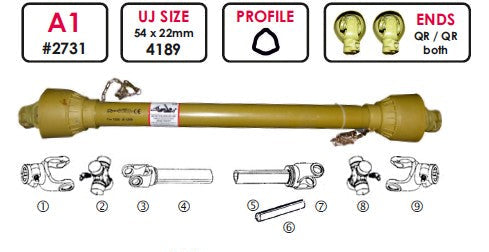

Technical specification

• Tube Type: Tri-Wall/Bell
• HP @ 540RPM: 14 HP
• Quick Release (Both Ends)
• Closed Length *UJ-UJ: 610mm
• UJ Size: 54*22mm
• Closed Length: 800mm
• PTO Stub Fitment: 1 3/8" x 6 Spline
