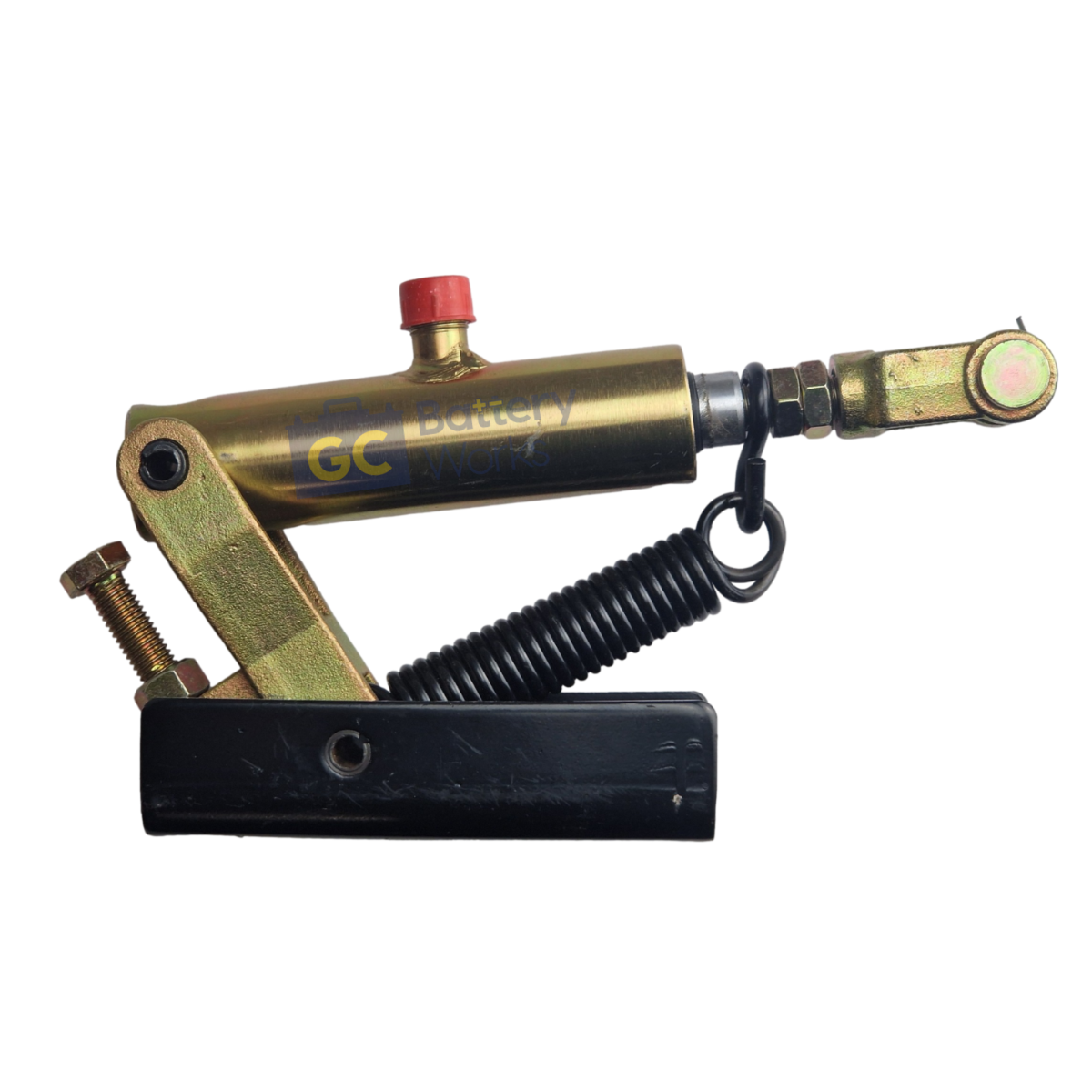

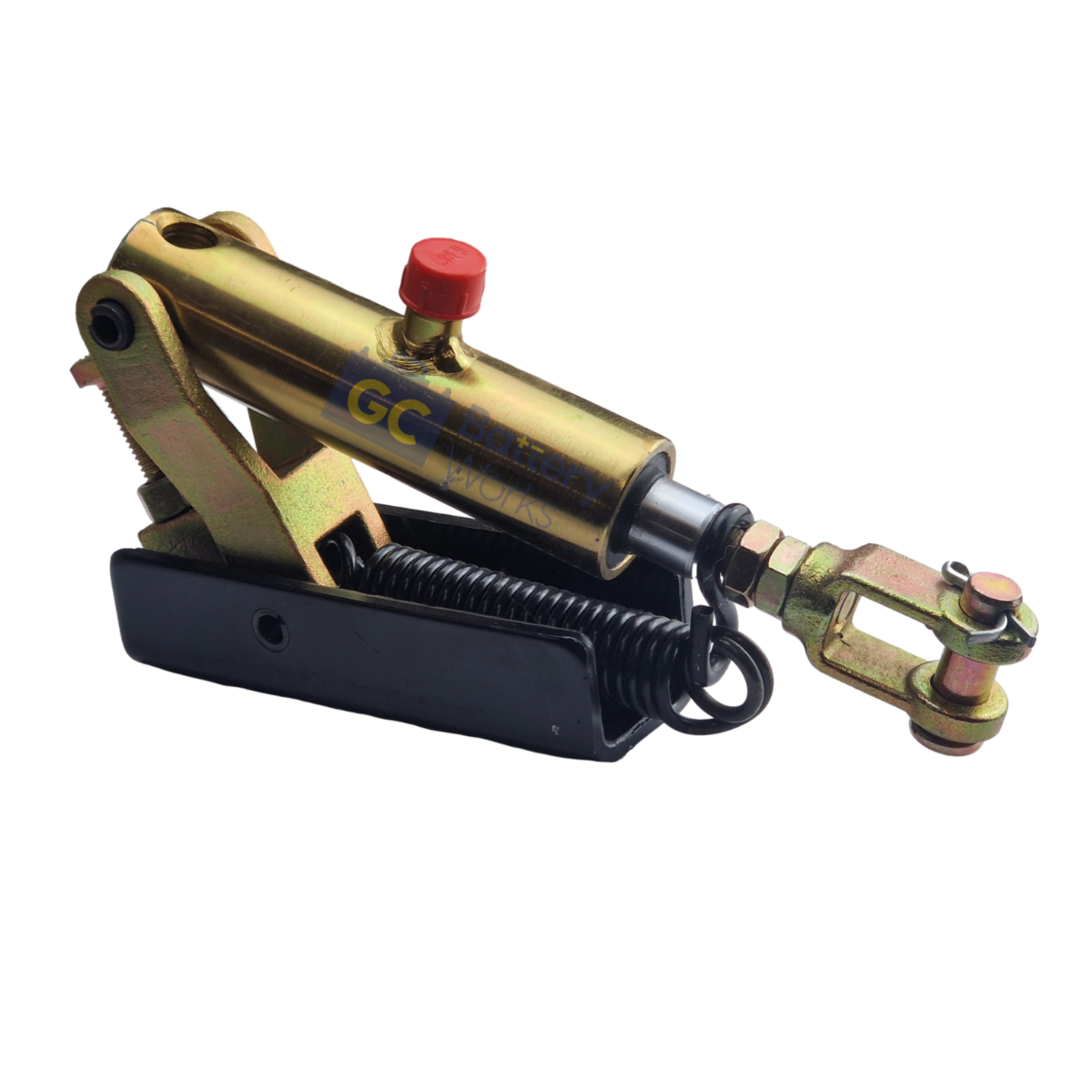

Trailer Brake Ram 20mm Rod Actuator 3/8" Ports Single Line Hydraulic Pneumatic

Trailer Brake Actuator Ram, featuring a 20mm Rod with a 55mm stroke. For use in single line brake systems found on agricultural trailers and heavy plant.

Specification(s/a):

• Closed Centres = 190mm
• Stroke = 55mm
• Open Centres = 245mm
• Cylinder OD = 38mm
• Pin Hole = 13mm
• X Drilled Ram
• Rod dia = 20mm
• Ports = 3/8"m BSP

• Volume of oil when fully opened (L) 0.07L
• Includes single ram return spring
